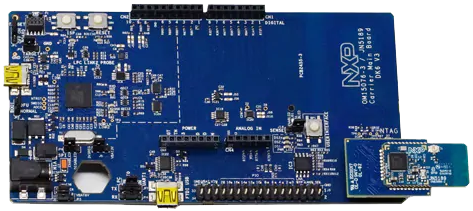

The JN5189/88 portfolio is designed to power the next generation of very low current wireless devices, supporting Zigbee 3.0, Thread, and IEEE 802.15.4. It includes several low-power modes and ultra-low TX and RX power consumption, which enables devices powered by JN5189/88 to have a longer battery life. With -100 dBm RX sensitivity and up to +11 dBm TX output power, JN5189/88 offers reliable and robust communications performance.
JN5189/88 is powered by an Arm® Cortex®-M4 MCU and can run up to 640 KB onboard flash and 152 KB SRAM, with enough room and flexibility for complex applications and OTA upgrade capability without external memory. It has a rich set of MCU peripherals and multiple serial communication interfaces for embedded connected applications. JN5189T/88T has an integrated NFC NTAG to implement contactless NFC commissioning, simplifying the network build-out.
OpenThread running on the JN5189/88 is a Thread Certified Component.

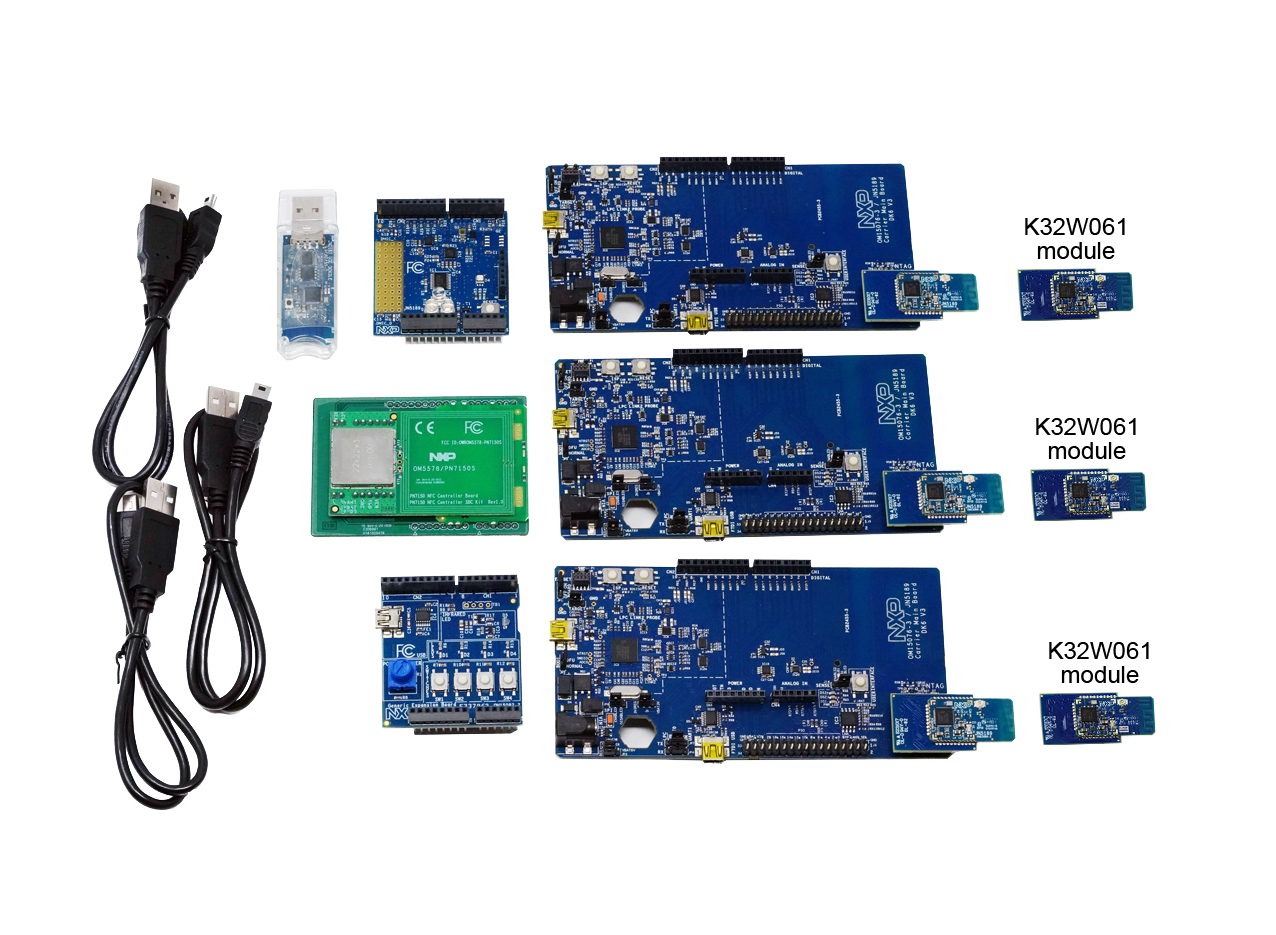

The K32W061/41 portfolio is designed to power the next generation of ultra-low-current multiprotocol wireless devices, supporting Zigbee/Thread/IEEE 802.15.4 and Bluetooth Low Energy 5.0. This portfolio includes multiple low-power modes and ultra-low TX and RX power consumption which enables IoT products powered by K32W061/41 to have extended battery life. With high RX sensitivity and configurable TX output power, the K32W061/41 offers reliable and robust connectivity performance.
K32W061/41 portfolio is powered by an Arm® Cortex®-M4 MCU and with 640 KB on-board flash and 152 KB SRAM, has enough room and flexibility for complex applications and over-the-air (OTA) upgrade capability without external memory. These devices also include a rich set of MCU peripherals and multiple serial communication interfaces for embedded connected applications and a quad serial flash memory controller, SPIFI, that can be used to extend non-volatile memory.
OpenThread running on the K32W061/41 is a Thread Certified Component.

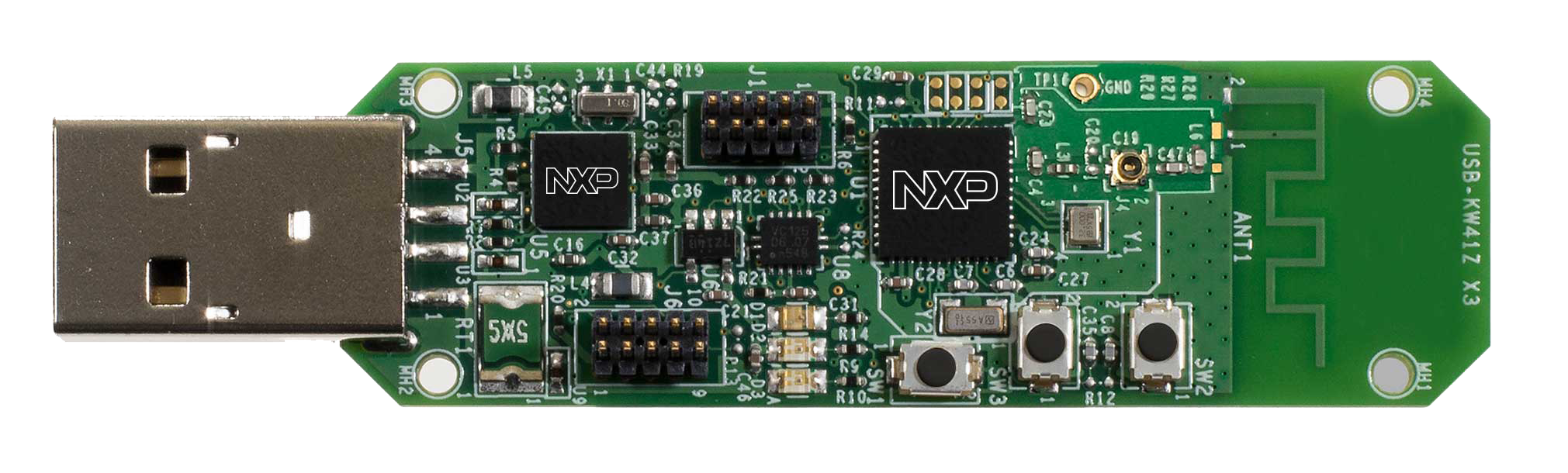

The KW41Z is an ultra low-power, highly integrated single-chip device that enables Bluetooth® low energy (BLE) v4.2 and IEEE® 802.15.4 RF connectivity for portable, extremely low-power embedded systems. The KW41Z MCU integrates a 2.4 GHz transceiver supporting FSK/GFSK and O-QPSK modulations, an ARM® Cortex®-M0+ CPU, up to 512 KB Flash and up to 128 KB SRAM, 802.15.4 packet processor, hardware security and peripherals optimized to meet the requirements of the target applications.
